Applications
- CO2 based heat pumps
- Supermarket cooling with CO2
- oil cooling
- Industrial heating and cooling
- energy facilities
Kelvion Ecobraze GBH-HP Series brazed plate heat exchangers are our pressure plate brazed model developed for the most demanding mechanical and thermal requirements. Transcritical and subcritical CO2 systems, with ratings up to 140 barfor industrial applications.
Applications and technical details
Safety Chamber™
The patented Safety Chamber™ absorbs thermal stress and pressure surges acting on the plates. Under overload conditions, the contact points around the heat exchanger ports flex with the load and help prevent leakage. This is a proprietary Kelvion safety feature.
Delta Injection™
Developed specifically for refrigeration applications, the patented Delta Injection™ feature distributes the refrigerant evenly as soon as it enters the heat exchanger, enabling high-performance evaporation. Under overload conditions, the contact points around the ports flex with the load and help prevent leakage. This is a proprietary Kelvion safety feature.

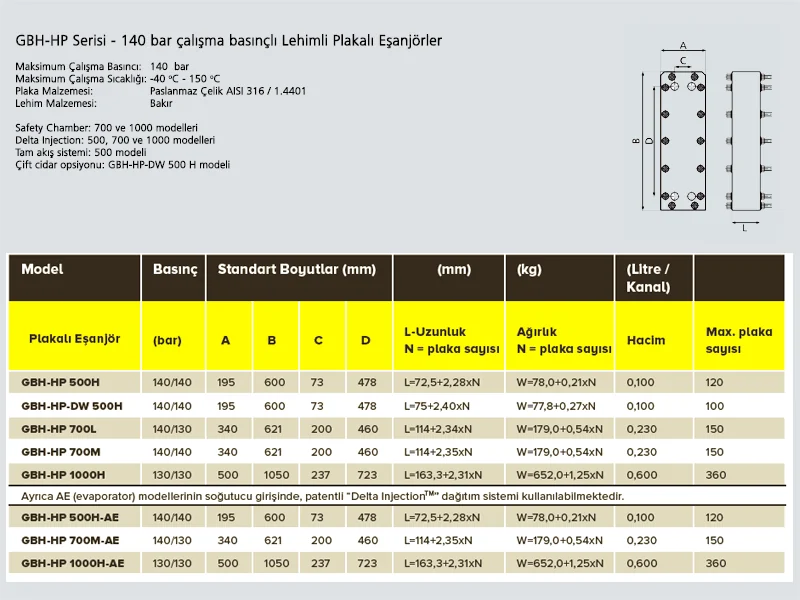

Models and Dimensions
