Applications
- Chiller evaporators in air conditioning applications
- Heat pump for heating and hot water production
- process cooling
- Refrigerant evaporators economizer
- Subcoolers and condensers
Kelvion Ecobraze GBH Series brazed plate heat exchangers are designed for continuous operation at pressures up to 45 bar and offer a wide range of circuit configurations. Their optimized plate pattern and improved port geometry provide efficient evaporator and condenser performance with R410A refrigerant.
Applications and technical details
Safety Chamber™
The patented Safety Chamber™ absorbs thermal stress and pressure surges acting on the plates. Under overload conditions, the contact points around the heat exchanger ports flex with the load and help prevent leakage. This is a proprietary Kelvion safety feature.
Delta Injection™
Developed specifically for refrigeration applications, the patented Delta Injection™ feature distributes the refrigerant evenly as soon as it enters the heat exchanger, enabling high-performance evaporation. Under overload conditions, the contact points around the ports flex with the load and help prevent leakage. This is a proprietary Kelvion safety feature.

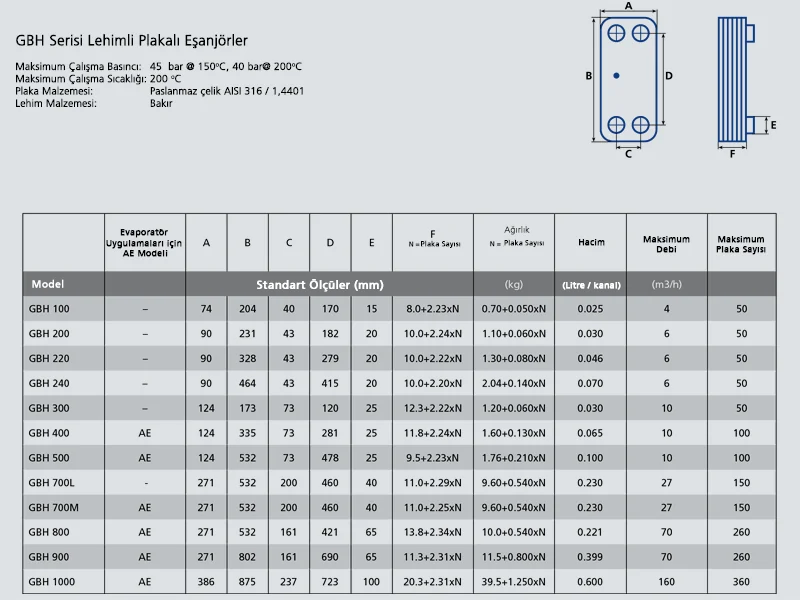

Models and Dimensions
